CGI / Digital 3D Model

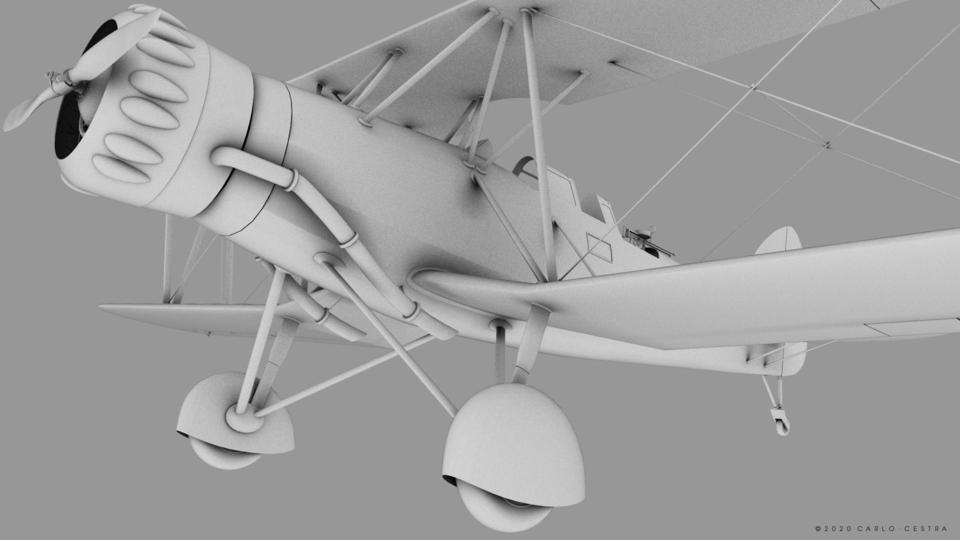

B4Y HA-327
Choose the version and license that best fits your project.
Available versions & licenses
Selected version$45.00USD
Included download files
File names only. Secure downloads become available after purchase.
Free Download
No registration, billing details or PayPal required. Each file downloads separately.
License terms for selected version
Read the license conditions before purchasing. PDFs open in a new tab.
Digital products. Digital products only. Review the selected version and its license before purchase.
Description
The B4Y carrier torpedo bomber (Navy Type 96 Carrier Attack Bomber) was used by the Imperial Japanese Navy Air Service from 1936 to 1943.
Technical Specifications
| Format | Lightwave 2018, OBJ, FBX, Blender 3.0+ |
|---|---|
| Compatibility | 3ds Max, Blender, Cinema4D, Houdini, Lightwave, Maya, Unity, Unreal Engine, Other |
| Geometry | Polygon mesh |
| Polygons Number | 72k |
| Textures | PBR |
| UV Mapping | Yes |
Historical Background
• Role & Service: Known officially as the Navy Type 96 Carrier Attack Bomber (Allied reporting name: "Jean"), it was a three-seat carrier-borne torpedo bomber used by the Imperial Japanese Navy Air Service from 1936 to 1943.
• Design Characteristics: Designed by Sanae Kawasaki, it was an interim biplane featuring an all-metal structure with fabric skin and a fixed landing gear system. To accelerate production, its wings were adapted from the Kawanishi E7K reconnaissance seaplane.
• Powerplant & Specs: The operational aircraft was powered by a single Nakajima Hikari 2 9-cylinder air-cooled radial engine generating up to 840 horsepower. It had a top speed of 278 km/h and carried one 800 kg torpedo or up to 500 kg in bombs.
• Combat History: The B4Y saw extensive action during the Second Sino-Japanese War and was notably involved in the controversial sinking of the gunboat USS Panay in 1937. By the time of the Pearl Harbor attack, it had been replaced in front-line duties by the monoplane Nakajima B5N ("Kate"), though it continued to serve as an advanced trainer on carriers like the Hōshō.
• Design Characteristics: Designed by Sanae Kawasaki, it was an interim biplane featuring an all-metal structure with fabric skin and a fixed landing gear system. To accelerate production, its wings were adapted from the Kawanishi E7K reconnaissance seaplane.
• Powerplant & Specs: The operational aircraft was powered by a single Nakajima Hikari 2 9-cylinder air-cooled radial engine generating up to 840 horsepower. It had a top speed of 278 km/h and carried one 800 kg torpedo or up to 500 kg in bombs.
• Combat History: The B4Y saw extensive action during the Second Sino-Japanese War and was notably involved in the controversial sinking of the gunboat USS Panay in 1937. By the time of the Pearl Harbor attack, it had been replaced in front-line duties by the monoplane Nakajima B5N ("Kate"), though it continued to serve as an advanced trainer on carriers like the Hōshō.
Additional Information
Color scheme: Akagi carrier in 1938.
The model was created based on blueprints, photos and historical documentation. It was created with precision in detail and in real units of measurement to be a faithful digital reproduction of the original.
Cockpit NOT INCLUDED.
LIGHTWAVE and BLENDER - The scene contains the model with uv materials assigned and in the rigged version a basic setup to control each movable part, such as ailerons, rudder, elevators, propeller and wheels.
OBJ and FBX - If you need to animate the airplane you have to make your own setup according to the 3d software you are using. You may need to reassign uv textures when open the files with different software. The aircraft is subdivided into parts each one with its uv map. To reassign textures you only have to load texture maps and assign each of them to the respective channel.
The model was created based on blueprints, photos and historical documentation. It was created with precision in detail and in real units of measurement to be a faithful digital reproduction of the original.
Cockpit NOT INCLUDED.
LIGHTWAVE and BLENDER - The scene contains the model with uv materials assigned and in the rigged version a basic setup to control each movable part, such as ailerons, rudder, elevators, propeller and wheels.
OBJ and FBX - If you need to animate the airplane you have to make your own setup according to the 3d software you are using. You may need to reassign uv textures when open the files with different software. The aircraft is subdivided into parts each one with its uv map. To reassign textures you only have to load texture maps and assign each of them to the respective channel.
